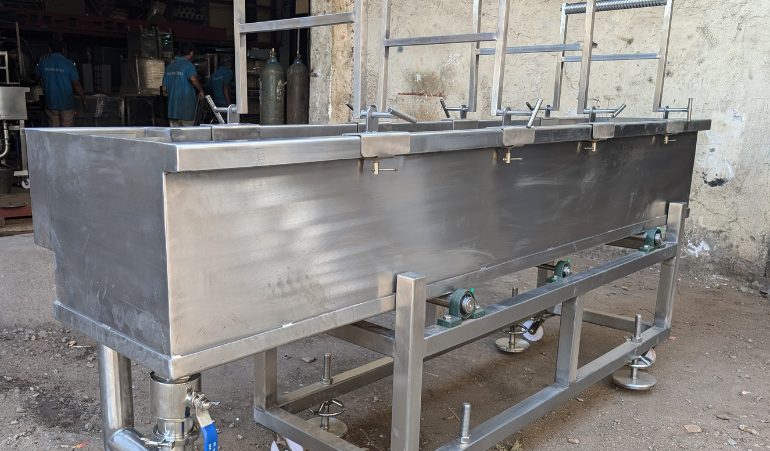

Stainless Steel Water Bath

1. Purpose:

• Designed for cooling extruded plastic products (pipes, profiles, cables, hoses, etc.) during the extrusion process.
•

2. Material:

• Tank Body: High-grade 304 or 316 stainless steel for corrosion resistance and long life.
• Support Frames: stainless steel Frames.
•

3. Dimensions (Customizable):

• Standard length: 3m, 6m, 9m, or as per customer requirements.
• Width and depth: Tailored to the size and type of extruded products.
•

4. Cooling System:

• Cooling Medium: Water circulation for effective heat dissipation.
• Forced circulation with pumps for high efficiency.
• Temperature Range: Maintains cooling water temperature between 10°C and 30°C.
• Optional chiller integration for precise temperature control.
•

5. Water Flow Management:

• Adjustable water inlet and outlet with manual or automatic control valves.
• Overflow pipe to maintain optimal water levels.
•

6. Conveyor & Product Handling (Optional):

• Integrated stainless steel or plastic belt conveyor for guiding extruded products through the water bath.
•

7. Tank Features:

• Double-Walled Construction: For insulation and prevention of heat loss.
• Drainage System: Drain plug or valve for easy cleaning and water replacement.
• Movable Design: Optional wheels or rollers for mobility.

8. Applications:

• Cooling extruded plastic pipes, profiles, films, cables, or other thermoplastics.
